5056 Iso Honeycomb Building Material , Honeycomb Sheet Material Light Weight

Product Categories
Pasia Honeycomb Products Co., Ltd
Contact Now

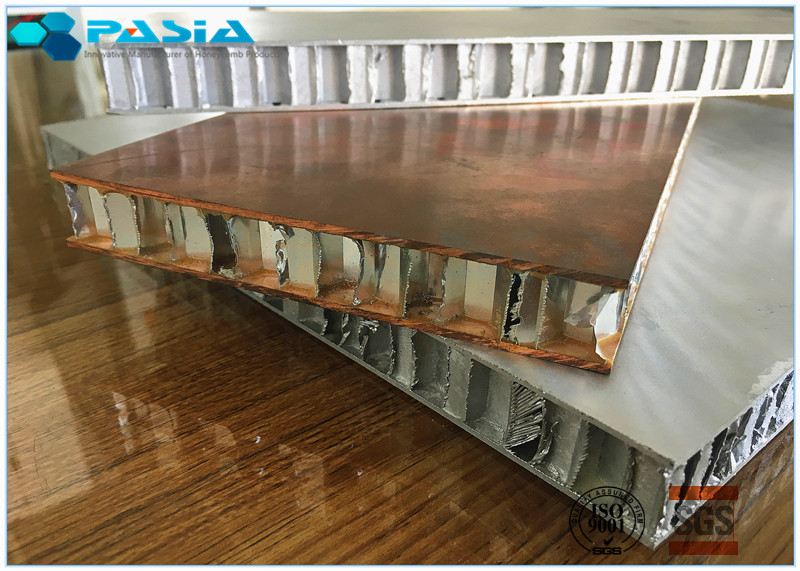

5056 Iso Honeycomb Building Material , Honeycomb Sheet Material Light Weight

  • 1
  • 2

Brand Name : Pasia

Model Number : AHC-0.04-LR

Certification : ISO9001-2008

Place of Origin : P. R. China

MOQ : 50m2

Price : Negotiable

Supply Ability : as per specification

Delivery Time : within 30days for a 20' container

Packaging Details : Export Package

Material : 5056

Foil Thinkness : 0.04mm

Cell Size : 2.5mm

Hardness : H18

Height : Customized

Product name : Aluminum Honeycomb Core For Railway Trains

Contact Now

5056 Iso Honeycomb Building Material , Honeycomb Sheet Material Light Weight







General Instruction:



0.04mm Alum. Foil Thickness Light Weight Aluminum Honeycomb Core For Railway Trains is made of aluminum foil which is bonded by special high strength and environment-friendly glue. The performance of the aluminum honeycomb core is determined by aluminum foil, joint glue and the specification of the core.



Features:



1 Elevated use temperatures
2 High thermal conductivity
3 Flame resistant
4 Excellent moisture and corrosion resistance
5 Fungi resistant
6 Low weight/High Strength






Aluminum foil
3003H24/5052H18 grade aluminum alloy foil with the surface special treated has been used for producing the core.


Glue
Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental protection and high or low temperature resistance properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating its performance, whose minimum requirement should be more than 2.0N/mm.

Specification of aluminum honeycomb core:

Item Unit Specification
Cell inch   1/8”     3/16”   1/4”
  mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66

Side
Length

 mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm

0.03-
0.05

0.03-
0.05

 0.03- 0.05

0.03-
0.06

0.03-
0.06

 0.03- 0.08 0.03- 0.08 0.03- 0.08

0.03-
0.08


Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150

Item Unit Specification
Cell inch 3/8”   1/2”     3/4”   1”
  mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
Foil Thickness mm

0.03-
0.08

0.03-
0.08

 0.03- 0.08

0.03-
0.08

0.03-
0.08

 0.03- 0.08 0.03- 0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150



Specifications can be customized.


Supply modes:
- Unexpanded block
- Unexpanded slice
- Expanded sheet
- Pieces cut to size
