Aluminum Honeycomb Core Material For Aluminum Honeycomb Partition Wall
General Instruction:
Aluminum honeycomb core is made of aluminum foil which is bonded by special high strength and environment-friendly glue. The performance of the aluminum honeycomb core is determined by aluminum foil, joint glue and the specification of the core.
High Strength Aluminum Honeycomb Core For Aluminum Honeycomb Partition Wall is formed by combining a preformed box-shaped panel and a backboard with an aluminum honeycomb core material. Using high quality 3003H24 alloy aluminum； panel thickness is 8-12mm non-cotton cement fiber board, bottom plate thickness is 5mm-8mm cotton-free cement fiber board; aluminum honeycomb core material adopts hexagonal shape 3003 core material, aluminum foil thickness 0.04-0.06mm, side length 12-16mm.
The characteristics of aluminum honeycomb panels:
(1) Light weight, high strength, high rigidity, stable structure and good wind pressure resistance
(2) Sound insulation, heat insulation, fire prevention, waterproof and shockproof functions can be
prominent
(3) The surface has amazing flatness and diverse thickness
(4) Strong decoration, easy to install and fast
Third, the application range of aluminum honeycomb panels: civil construction, public construction projects hotels, hotels, shopping malls, office buildings, hospitals, schools, stations, airports, stadiums, and other interior partition walls, and building exterior walls.
Features:
| • Elevated use temperatures |
• High thermal conductivity |
• Flame resistant |
• Excellent moisture and corrosion resistance |
• Fungi resistant |
• Low weight/High Strength |
Specification of aluminum honeycomb core:
| Item | Unit | Specification | |
| Cell | inch | | 1/8” | | | 3/16” | | 1/4” | | | |
| | mm | 2.6 | 3.18 | 3.46 | 4.33 | 4.76 | 5.2 | 6.35 | 6.9 | 8.66 | |
| Side
Length | mm | 1.5 | 1.83 | 2 | 2.5 | 2.75 | 3 | 3.7 | 4 | 5 | |
| Foil Thickness | mm | 0.03-
0.05 | 0.03-
0.05 | 0.03- 0.05 | 0.03-
0.06 | 0.03-
0.06 | 0.03- 0.08 | 0.03- 0.08 | 0.03- 0.08 | 0.03-
0.08 | |
| Width | mm | ≤440 | ≤440 | ≤440 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | |
| Length | mm | ≤1500 | ≤1500 | ≤2000 | ≤3000 | ≤3000 | ≤3200 | ≤4000 | ≤4000 | ≤5500 | |
| Height | mm | 1.7~150 | 1.7~150 | 1.7~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | |
| | |
| Item | Unit | Specification | |
| Cell | inch | 3/8” | | 1/2” | | | 3/4” | | 1” | |
| | mm | 9.53 | 10.39 | 12.7 | 13.86 | 17.32 | 19.05 | 20.78 | 25.4 | |
| Side Length | mm | 5.5 | 6 | 7.33 | 8 | 10 | 11 | 12 | 15 | |
| Foil Thickness | mm | 0.03-
0.08 | 0.03-
0.08 | 0.03- 0.08 | 0.03-
0.08 | 0.03-
0.08 | 0.03- 0.08 | 0.03- 0.08 | 0.03- 0.08 | |
| Width | mm | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | |
| Length | mm | ≤5700 | ≤6000 | ≤7500 | ≤8000 | ≤10000 | ≤11000 | ≤12000 | ≤15000 | |
| Height | mm | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | |
| | | | | | | | | | | | | | | | | | | | | | |
Specifications can be customized.
Supply modes:
- Unexpanded block
- Unexpanded slice
- Expanded sheet
- Pieces cut to size
Applications:
Product Tags:
|
|

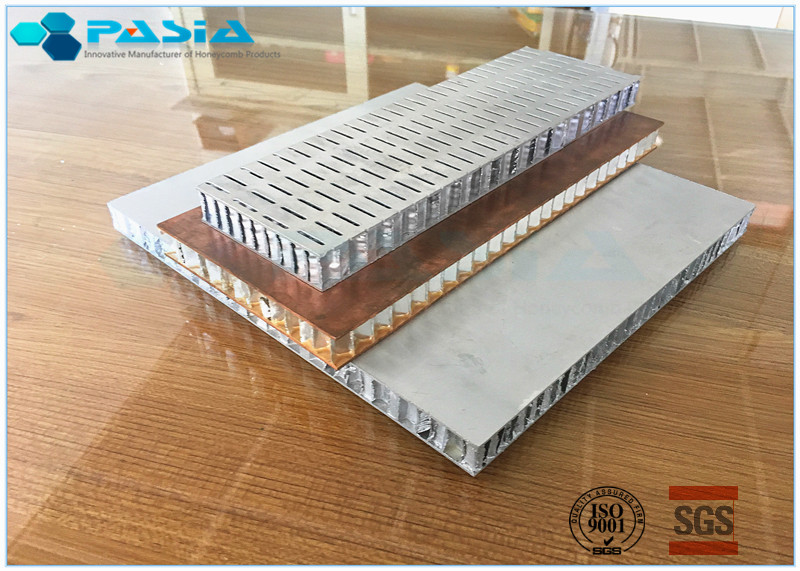

Aluminum Honeycomb Core Material For Aluminum Honeycomb Partition Wall Images
|
