Durable Honey Core / Aluminium Core Used In Various Exhibition Spotlight Gratings
General Instruction:

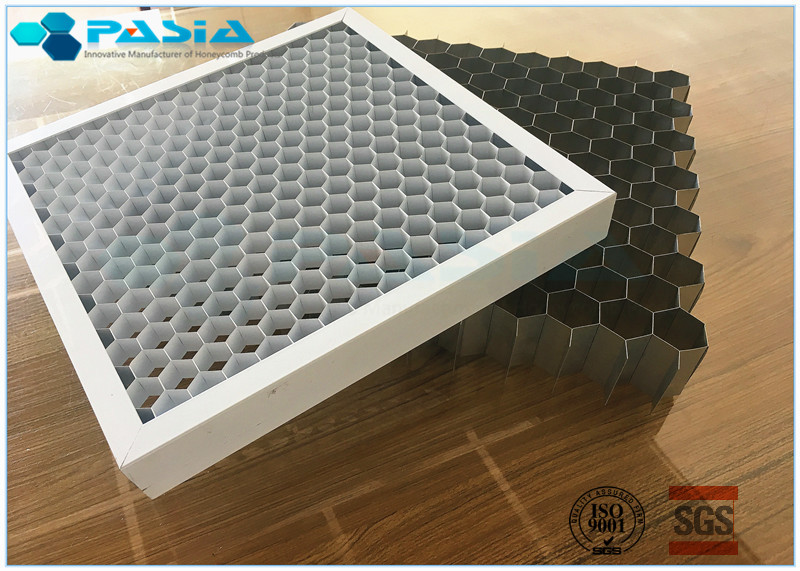

The aluminum honeycomb core is bonded by a plurality of layers of aluminum foil, laminated, and then stretched to form a regular honeycomb shape. Aluminum honeycomb has excellent performance, with sharp, clear hole walls and no burrs, suitable for high quality core to face bonding and other applications. It has the advantages of anti-deformation, good sound insulation and impact resistance. It is especially suitable for various rectifying air outlets, pipes and so on. Open, straight, dense honeycomb micropores are the most effective flow-conducting materials, especially for mass transfer and fan exchange systems. The use of a side blown honeycomb rectifying plate on the spinning machine allows for a more uniform wind speed for optimal cooling and curing of the tow. It can also be used as a lampshade.
Advantages:
| A | High strength of aluminum honeycomb core: The reason why honeycomb structure becomes the most effective and reasonable structure in nature is because of its regular hexagonal geometry. This shape disperses the external forces well and supports each other, making it a perfect mechanical structure. |
| B | Light weight of aluminum honeycomb core: The hexagonal honeycomb core saves a lot of raw materials by virtue of its excellent mechanical structure. Under the premise of ensuring strength, it can use thinner materials, so that the weight is lighter, which means The hexagonal honeycomb core saves raw material costs. |
| C | Aluminum honeycomb core heat insulation and sound insulation: Due to the small density of hexagonal honeycomb, the honeycomb wall that transmits heat energy and sound waves is thin, and the heat insulation and sound insulation performance are better than round tube honeycomb. |
1. Standard products:
Expanded dimensions L ≤ 600mm and W ≤ 600mm, available in any thickness, any quantity, with a minimum thickness of 1.8mm.
2. Special products:
Other sizes are available, with honeycomb cores up to 1800mm in the W direction and up to 1200mm in the L direction.
3. Tolerance:
The thickness of the cutting bar is ±0.2mm
4, Surface
No special treatment, no oil, no burr (if the product color is black, it can be used for electrophoresis)
5. Quality
Each batch of products is in compliance with environmental protection requirements.
6. Package
The wooden box is packaged, and the unfolded blocks are separated by kraft paper or foam between each piece to prevent the cell from being deformed during transportation and the cell of the honeycomb is deformed or the aluminum foil is broken to affect the final use.
Features:
| • Elevated use temperatures |
• High thermal conductivity |
• Flame resistant |
• Excellent moisture and corrosion resistance |
• Fungi resistant |
• Low weight/High Strength |
Specifications can be customized.
