Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board

Pasia Honeycomb Products Co., Ltd
Contact Now

Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board

  • 1
  • 2

Brand Name : Pasia

Model Number : AHC-Q-M846

Certification : ISO9001-2008

Place of Origin : P. R. China

MOQ : 10-100m2

Price : Negotiable

Supply Ability : as per specification

Delivery Time : within one month for a 20' container

Packaging Details : Export Package

Material : 3003

Foil Thinkness : 0.05-0.07mm

Cell Size : 12mm

Hardness : H16

Height : 10mm

Product name : High Quality Aluminum Honeycomb Core For Aluminum Honeycomb Composite Marble Board

Contact Now



Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board



General Instruction:

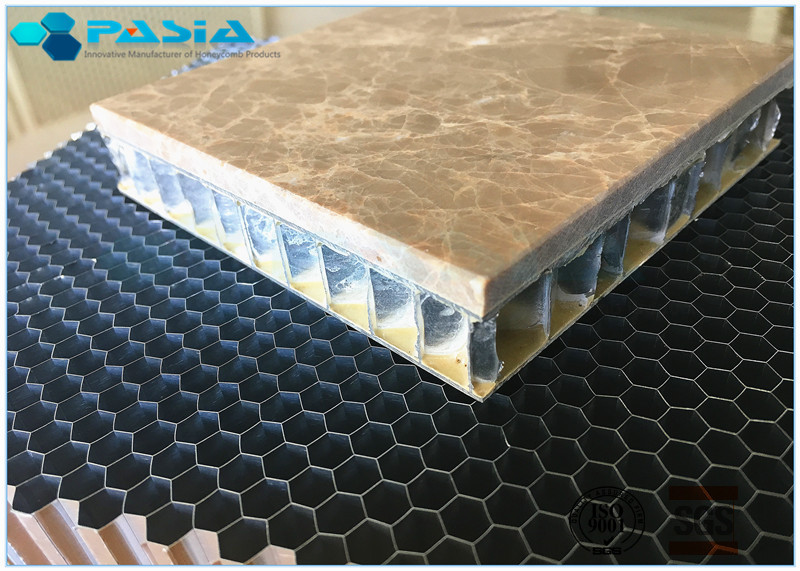

The marble stone aluminum honeycomb board / panel is 3-5mm stone combined with 10-25mm aluminum honeycomb panel, and is formed by special adhesive bonding.



For exterior curtain wall, it is recommended that the marble stone thickness of the stone aluminum honeycomb panel is 4-5mm, and the thickness of the aluminum honeycomb panel is not less than 25mm; for the interior wall surface, the stone thickness of the stone aluminum honeycomb panel is recommended to be 3-4mm, and the thickness of the aluminum honeycomb panel is 15mm. For interior ceilings, it is recommended that the stone thickness of the stone aluminum honeycomb panel is 3-4mm, and the thickness of the aluminum honeycomb panel is 15-20mm; for the floor panel, the stone thickness of the stone aluminum honeycomb panel is recommended to be 5-8mm, and the thickness of the aluminum honeycomb panel is 10 -15mm.





The characteristics of aluminum honeycomb panels:



(1) Light weight, high strength, high rigidity, stable structure and good wind pressure resistance



(2) Sound insulation, heat insulation, fire prevention, waterproof and shockproof functions can be

prominent



(3) The surface has amazing flatness and diverse thickness



(4) Strong decoration, easy to install and fast



Third, the application range of aluminum honeycomb panels: civil construction, public construction projects hotels, hotels, shopping malls, office buildings, hospitals, schools, stations, airports, stadiums, and other interior partition walls, and building exterior walls.


Features:



• Elevated use temperatures

• High thermal conductivity

• Flame resistant

• Excellent moisture and corrosion resistance

• Fungi resistant

• Low weight/High Strength


Specifications can be customized.





Applications:



Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board
